Guide 8: How to Identify Terminals in the Home and Industrial Wiring
Understanding Terminals
Terminals are crucial for house and industrial wiring. They connect electrical circuits and ensure safety. Knowing how to identify and use them is important for any wiring project.
There are various types of terminals. Each serves a specific purpose. Understanding their differences can help you choose the right one for your project.
Types of Terminals
Terminals come in different shapes and sizes. Common types include:
- Ring Terminals: These are circular and fit around a screw or bolt.

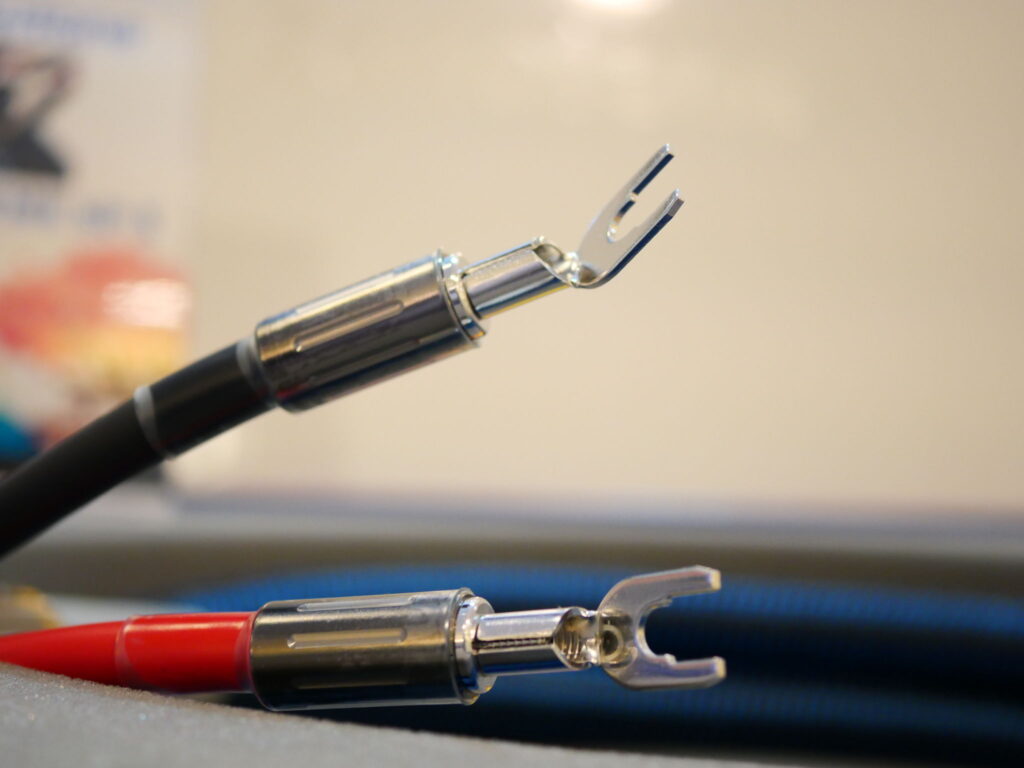

- Spade Terminals: These have a forked shape and are easy to install and remove.
- Butt Connectors: These join two wires together end-to-end.
Each type has its own advantages. Choose the one that best fits your needs.
Identifying Terminals
Identifying terminals is straightforward. Look for specific features like shape and size. Also, check for any markings that indicate the terminal type.
Color coding is another useful feature. Many terminals are color-coded based on their size and capacity. This makes it easier to match the terminal to the wire size.
Using Terminals
Using terminals correctly is vital for safety. Follow these steps:
- Strip the wire to the appropriate length.
- Insert the wire into the terminal.
- Crimp or screw the terminal to secure the wire.
Ensure that the connection is tight. Loose connections can cause electrical faults.
Safety Tips
Always prioritize safety when working with electrical wiring. Here are some tips:
- Turn off the power before starting any work.
- Use the right tools for the job.
- Double-check connections to ensure they are secure.
Following these tips can help prevent accidents and ensure a successful wiring project.
Conclusion
Identifying and using terminals correctly is essential for any wiring project. Understanding the different types and their uses can make the process easier. Always prioritize safety and follow best practices to ensure a successful and safe wiring job.
