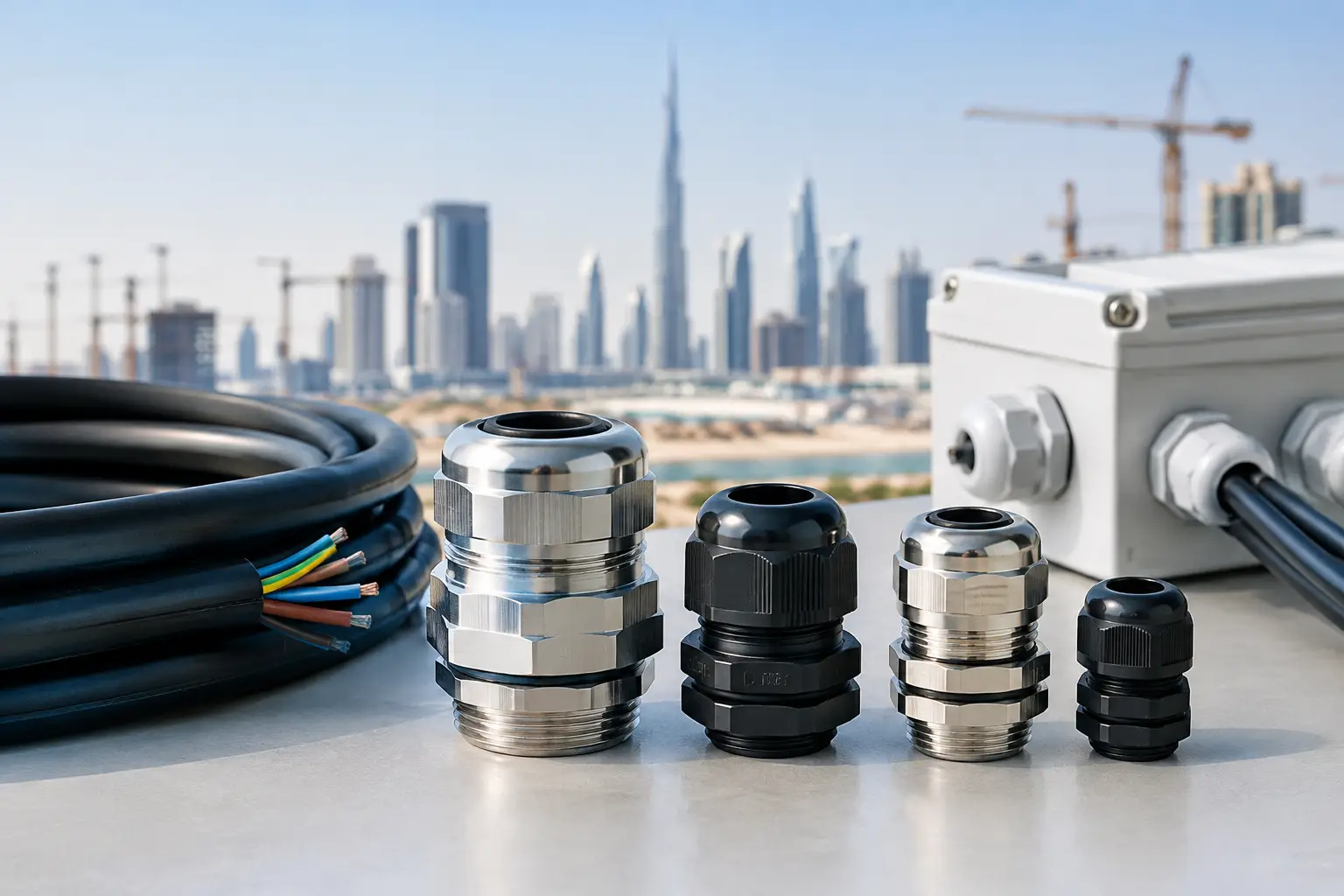

How to Select Cable Glands for UAE Projects

A cable gland is a small component with a large jobsite consequence. Select the wrong thread, sealing range, material, or certification and a properly installed cable can still fail inspection, lose enclosure protection, or create a fault path at the point of entry. Knowing how to select cable glands should therefore start with the cable and enclosure as one system, not with the gland size alone.

For contractors and MEP procurement teams, the objective is clear: maintain cable retention, ingress protection, grounding continuity where required, and compliance with the approved electrical specification. A gland must also be available in the right size and material when installation crews need it. That is how a minor accessory stops becoming a site delay.

How to Select Cable Glands From the Installation Conditions

Start with the installation drawing, panel schedule, cable data sheet, and enclosure specification. These documents establish the cable construction, entry thread, environmental exposure, and any hazardous-area classification. Do not substitute a general-purpose gland simply because it fits the hole.

A correct selection answers five practical questions: What cable is being terminated? What is the entry thread? What environmental protection must the completed enclosure retain? Is electrical bonding or hazardous-area certification required? Can the gland withstand the site conditions for its expected service life?

Identify the cable construction first

The gland must match the cable type. A non-armored PVC or XLPE control cable normally uses a compression gland designed to seal on the outer sheath. A steel wire armored cable needs an armored gland that provides a controlled termination to the armor and, where the design requires it, maintains earth continuity. Using a non-armored gland on armored cable can leave the armor unsupported and compromise the intended grounding arrangement.

For screened or shielded cables, consider an EMC gland where the specification calls for 360-degree screen bonding at the enclosure entry. This is common in control panels, instrumentation circuits, variable-frequency drive installations, and areas where electromagnetic interference can affect system performance. An ordinary brass gland may provide mechanical retention but not the required screen termination.

Cable diameter is equally critical. Check the manufacturer’s stated sealing range against the actual outside diameter of the cable, including any sheath variation. A gland selected at the extreme edge of its range may seal poorly if the cable varies between batches. Where possible, choose a size that places the measured cable diameter comfortably within the published sealing range.

Match the thread and enclosure entry

Cable gland threads are not interchangeable. Common entries include metric threads such as M20, M25, M32, and M40, along with NPT, PG, and BSP threads on older equipment or imported enclosures. Confirm the thread type, nominal size, and pitch before ordering. An M20 gland will not correctly mate with a 1/2-inch NPT entry, even when both appear close in diameter.

Also check the enclosure wall thickness and access for the locknut. A gland may require a locknut, sealing washer, or earth tag depending on the entry design and installation method. For thin-wall panels, ensure the gland’s thread length and nut engagement are adequate. For tapped entries, make sure the selected thread is designed for direct engagement and that the installation method preserves the required protection rating.

Blanking plugs deserve the same attention. Every unused entry must be closed with a compatible, rated plug. An IP-rated enclosure loses its declared protection if unused holes are left open or sealed with unapproved fittings.

Select Protection for Water, Dust, Heat, and Corrosion

The IP rating of a cable gland should support the required protection level of the enclosure, but the final rating depends on the entire assembly. The cable outer sheath, gland seal, thread interface, washer, enclosure material, tightening torque, and installation quality all affect the result.

For indoor electrical rooms, a standard nylon or nickel-plated brass gland may be appropriate when the enclosure and project specification allow it. For outdoor distribution boards, washdown areas, plant rooms, coastal sites, and exposed rooftop equipment, consider higher ingress protection and materials suited to moisture, UV exposure, chemical contact, and corrosion.

Nickel-plated brass is widely used for general industrial electrical work because it offers good mechanical strength and corrosion resistance. Stainless steel is often the better choice in highly corrosive, marine-adjacent, food-processing, chemical, or aggressive washdown environments. Nylon glands can be cost-effective for indoor, non-armored cables, but they should be selected carefully where high temperature, impact, UV, or chemical exposure is expected.

Temperature limits apply to more than the ambient air. Consider conductor operating temperature, heat from the enclosure, direct sun exposure, and any process heat nearby. The sealing insert must remain effective throughout that temperature range. A gland that performs well in an air-conditioned riser may not be suitable for an exposed equipment skid or a hot mechanical room.

Armored Cables Need a Complete Bonding Decision

With armored cables, the gland selection is part of the earthing design. The selected gland must suit the armor type, whether steel wire armor, steel tape armor, braided armor, or another construction. It must also be installed so the armor is properly clamped without damaging the bedding or inner sheath.

Specify whether the design requires an internal earth connection, an external earth tag, or both. An earth tag is not an automatic substitute for correct armor termination. It is an accessory used to provide a convenient bonding point where required by the design and authority requirements.

Single-wire armored cables also need attention where induced currents are a concern. Depending on the circuit arrangement and engineering design, nonmagnetic materials or specific gland arrangements may be required. Do not make this decision at the counter. Confirm it with the electrical engineer and cable manufacturer data.

Hazardous Areas Require Certified Gland Systems

Hazardous-area installations are not a place for near matches. If the cable enters equipment in a classified gas or dust area, select a gland with certification appropriate to the equipment protection concept, zone or division classification, gas group or dust group, temperature class, and environmental conditions.

Barrier glands may be required where the cable construction permits gas migration through the cable core or where the equipment certificate specifically requires a compound barrier seal. Standard compression glands and barrier glands serve different functions. A barrier gland uses a sealing compound to create a seal around individual conductors or cores, while a standard gland generally seals around the cable’s outer sheath.

Verify that the gland certificate, marking, operating temperature range, and installation instructions align with the approved equipment and project documents. Keep certificates and batch traceability available for quality records. For UAE projects, this documentation can prevent avoidable questions during consultant review, authority inspection, or handover.

Build Cable Gland Selection Into Procurement

The most frequent procurement error is ordering by nominal cable size rather than by actual outer diameter, armor type, thread, and rating. A cable described as 4C x 10 mm² does not automatically identify the correct gland. Two cables with the same conductor size can have different outer diameters and sheath constructions.

Before releasing a bulk order, create a simple gland schedule against each cable route or panel entry. Record the cable manufacturer and type, measured outside diameter, gland material, thread, IP requirement, armor requirement, earthing accessories, and any certification requirement. This schedule helps the purchasing team consolidate quantities while protecting the installation team from mixed or unsuitable items.

For larger projects, retain a small allowance for verified diameter variation and future additions, but do not replace specification control with over-ordering. Standardizing approved gland series across panels can reduce installation errors, simplify stock control, and speed up replacements during commissioning.

Check installation as carefully as selection

Even the right gland fails if it is installed incorrectly. Installers should follow the manufacturer’s stripping dimensions and torque guidance, use the correct spanners, and avoid twisting the cable while tightening. Over-tightening can damage the seal or cable sheath. Under-tightening can reduce pull-out resistance and allow water or dust ingress.

Inspect completed entries for a continuous seal, correct locknut engagement, properly terminated armor, intact earth connections, and no visible gaps around the cable. Confirm that cable support is provided independently where the cable weight or movement could load the gland beyond its intended function.

A dependable cable gland selection protects more than an enclosure. It protects inspection readiness, equipment uptime, and the handover date. When cable data, environmental exposure, and certification requirements are checked before procurement, crews can install with confidence instead of waiting for replacement materials at the panel door.
